ALUMINIUM DOORS AND WINDOWS
Our aluminium windows combine sleek design with exceptional strength and durability. Built to withstand extreme weather, they offer excellent thermal insulation, noise reduction, and security. Each unit is precisely fabricated in our advanced facility, ensuring flawless quality and Available in a wide range of styles and finishes; our aluminium windows are ideal for both residential and commercial projects

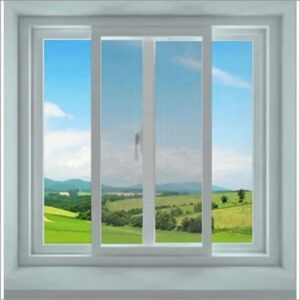

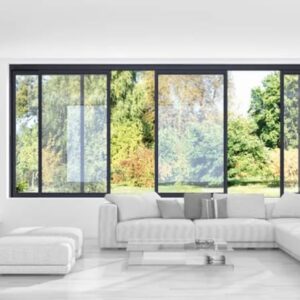

SLIDING WINDOWS
SLIDING SERIES
POPULAR TYPOLOGIES

2T 2S

3T 3S

3T 2S + MESH

2T 4S

2T 2S + FIXED

2T 2S + FIXED
ALUMINIUM DOORS AND WINDOWS
SLIDING SERIES



SLIDING WINDOWS
AS-SD LITE
FEATURES :
Product Specifications (size)
- Max Sash Height (mm): 1500
- Max Sash Width (mm): 800
- Glass Range (mm): 4-6
Performance Parameters
-
Windload: 1.6 kpa
as per class 4A (BS EN12210 : 2000) -
Air Tightness: 150 Pa
as per class 2 (BS EN12207 : 2000) -
Water Tightness: 150 Pa
as per Class 4A (BS EN12207 : 2000)
SLIDING WINDOWS
AS-SD PRO
FEATURES :
Product Specifications (size)
- Max Sash Height (mm): 2400
- Max Sash Width (mm): 1500
- Glass Range (mm): 5-24
Performance Parameters
-
Windload: 2 kpa
as per Class B5 (BS EN12210 : 2000) -
Air Tightness: 500 Pa
as per class 2 (BS EN12207 : 2000) -
Water Tightness: 150 Pa
as per class 5A (BS EN12207 : 2000)

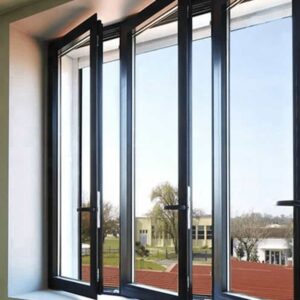

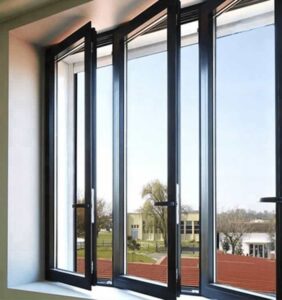

CASEMENT WINDOWS







FEATURES :
Product Specifications (size)
-
Max Sash Height (mm):
Door – 2400, Window – 1500 -
Max Sash Width (mm):
Door – 900, Window – 750 - Glass Range (mm): 5 – 20
Performance Parameters
-
Windload: 1.6 kpa
as per Class 4C (BS EN12210 : 2000) -
Air Tightness: 150 Pa
as per class 2 (BS EN12207 : 2000) -
Water Tightness: 150 Pa
as per Class 4A (BS EN12207 : 2000)
POPULAR TYPOLOGIES

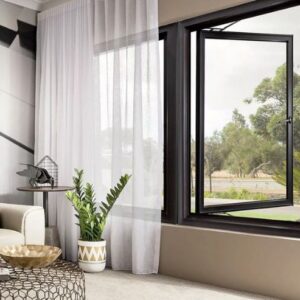

Side Hung

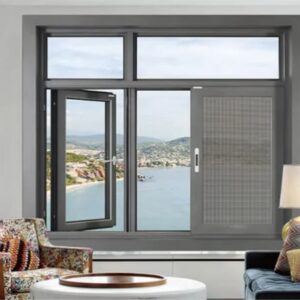

Fixed + Openable

Fixed + Openable

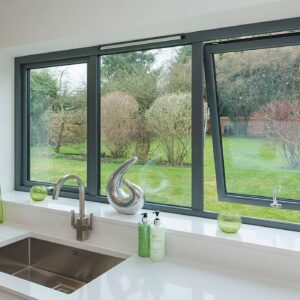

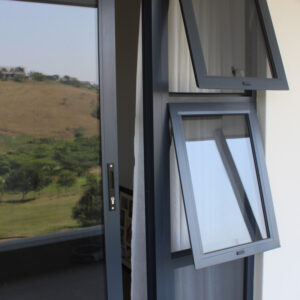

Top Hung

Top Hung + Fixed

Side Hung Door

French Door

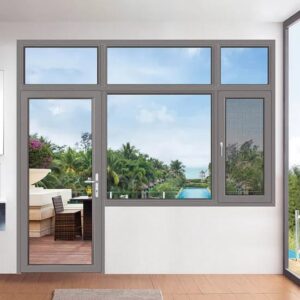

Side Hung Door + Side Fix
Why Aluminium Windows?
Sleek & Modern Look
Slim profiles and clean lines give aluminium windows a contemporary edge, allowing for larger glass panels and more natural light.
Built to Last
Aluminium is naturally resistant to rust, corrosion, and weather damage. These windows won’t warp, crack, or fade—perfect for long-term use with minimal maintenance.
Low Maintenance
Forget constant painting or polishing. A simple wipe-down keeps aluminium windows looking like new for years.
Energy Efficient
When combined with thermal break technology and quality glazing, aluminium windows offer excellent insulation—helping you reduce energy bills while staying comfortable year-round.
High Security
Aluminium frames are strong and support advanced locking systems, making them a safe and secure option for homes and buildings.
Eco-Friendly
Aluminium is 100% recyclable and environmentally responsible. It’s a sustainable choice for green building solutions.
Versatile & Customisable
Available in a wide range of colors, finishes, and styles to suit any architectural need—residential or commercial.
Noise Reduction
When paired with the right glass, aluminium windows can significantly reduce outside noise, offering a quieter and more peaceful indoor environment.
Seamless Integration
Aluminium windows easily integrate with modern facades, sliding systems, and glass walls—ideal for both residential and commercial architecture
